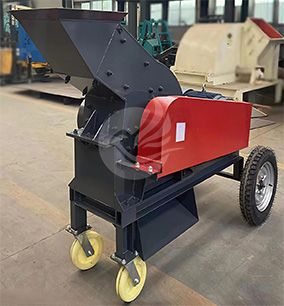

Hammer crusher is mainly used for crushing medium hardness and brittle materials, such as limestone, coal gangue, shale and so on.
It offers larger feed particle size and higher crushing ratio compared with other hammer crushers with the advantages of alloy composite hammer head with high wear resistance, large rotational inertia and high rotor kinetic energy.
It utilizes high-speed rotating hammer head to impact materials, with large crushing ratio and high efficiency.
The crushed material has uniform particle size with a high proportion of cubic-shaped particles.
Compact structure design and easy to maintain.
High crushing efficiency, low energy consumption.
It is suitable for various medium hardness and brittle materials.
1.The hammer crusher is usded in mining area: crushing various ores.
2.The hammer crusher is usded in building materials area: crushing building stones.
3.The hammer crusher is usded in metallurgy area: processing metallurgical raw materials.
4.The hammer crusher is usded in chemical industry: crushing chemical raw materials.
5.The hammer crusher is usded in highway and railroad area: crushing road base materials.
6.The hammer crusher is used in water conservancy: processing related raw materials.
|
Model |
Rotor Size (Diameter*Length) （mm） |
Feed Opening Size（mm） |
Feed Particle Size（mm） |
Production Capacity（t/h) |
Motor Power （kw） |
Overall Dimension（mm） |
|
PCZ1310 |
Ø1310*790 |
850*800 |
≤600 |
100-160 |
132 |
2818*2155*2388 |
|
PCZ1510 |
Ø1500*950 |
1000*900 |
≤700 |
160-210 |
132*2 |
3260*2414*2750 |
|
PCZ1512 |
Ø1500*1160 |
1200*900 |
≤750 |
250-320 |
160*2 |
3260*2624*2750 |
|
PCZ1615 |
Ø1650*1452 |
1500*1200 |
≤1000 |
420-500 |
200*2 |
3667*2937*3436 |
|
PCZ1620 |
Ø1660*1900 |
2000*1200 |
≤1200 |
800-1000 |
400*2 |
3667*3200*3436 |
|
PCZ1820 |
Ø1800*1964 |
2000*1200 |
≤1200 |
1000-1200 |
450*2 |
3700*3270*3515 |
|
PC0706 |
Ø700*570 |
618*510 |
≤400 |
50-70 |
75 |
1950*1340*1480 |
|
PC0808 |
Ø800*750 |
780*610 |
≤500 |
80-100 |
132 |
2280*1790*1670 |
|
PC0910 |
Ø900*1000 |
1070*750 |
≤600 |
150-200 |
110*2 |
2600*2200*1940 |
|
PC1012 |
Ø1000*1180 |
1255*810 |
≤650 |
250-300 |
132*2 |
2800*2310*2210 |
|
PC1213 |
Ø1200*1280 |
1350*920 |
≤750 |
300-350 |
160*2 |
2970*2580*2510 |
|
PC1216 |
Ø1200*1590 |
1530*920 |
≤750 |
400-500 |
200*2 |
3070*2840*2580 |
|
PC1220 |
Ø1220*1950 |
2000*920 |
≤750 |
500-600 |
220*2 |
3080*3380*2580 |
|
Model |
Feed Opening Size （mm） |
Production Capacity（t/h） |
Number of Hammer Head |
Hammer Head Weight （kg/pcs） |

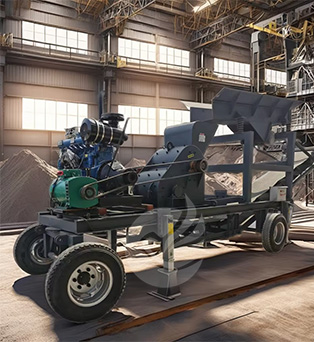

Drive |
|
|
Motor |
Diesel |
|||||
|
PC200*300 |
250*210 |
1-3 |
9 |
1.7 |
5.5kw |
12HP |
|
PC240*450 |
310*280 |
3-5 |
16 |
2.5 |
7.5kw |
15HP |
|
PC310*520 |
370*290 |
7-8 |
20 |
3 |
15kw |
25HP |
|
PC400*600 |
480*370 |
10-15 |
20 |
5 |
22kw |
36HP |
|
PC600*600 |
630*370 |
15-20 |
24 |
5 |
30kw |
36HP |
|
PC600*800 |
650*470 |
20-30 |
24 |
8 |
55kw |
4105 |
|
PC800*800 |
800*480 |
25-35 |
28 |
8 |
75kw |
6105 |
|
PC800*1000 |
|
30-40 |
28 |
15 |
90kw |
6105 |
|
PC1000*1000 |
|
40-50 |
32 |
15 |
110kw |
6110 |
