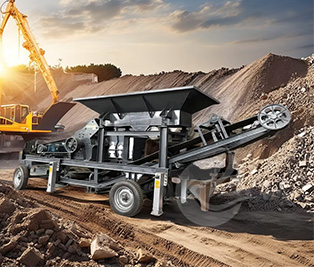

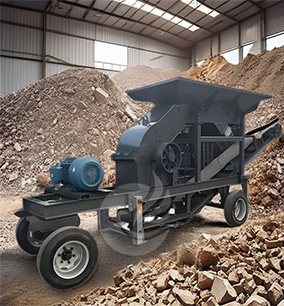

Small Mobile Hammer Crusher

The small mobile hammer crusher is a compact, low-power mobile crushing device designed specifically for processing small batches of materials (construction waste, concrete, bricks, asphalt, natural stone).

It is ideal for handling medium to low hardness materials,and the output is typically a mixture of materials.

How to choose?

1. Raw Ore Type — (construction waste, coal,limestone etc.)

2. Production Capacity — 1 to 100 tons/hour (depending on customers' requirements).

3. Feed and Output Size — Determine the feed port size, number of screen layers, and mesh hole size.

4. Power Source— Diesel, electric or dual power.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

Small Mobile Hammer Crusher

01 Diesel engine/motor drive: Adopt diesel engine (suitable for no power supply environment) or electric motor (need 380V industrial electricity) as power source to drive main crushing machine, feeder and conveyor belt.

02 Vibrating feeder: Evenly conveying materials to the crusher, adjustable feeding speed, matching the processing capacity of the crusher.

03 Crushing system:The hammer crusher crushes large materials and the output material is mixtured size.

04 Vibrating screen: Some models are equipped with multi-layer screens to classify the crushed materials according to particle size (e.g.0-5mm,5-10mm,10-20mm).

05 Belt Conveyor: Convey the finished materials to the stacking area or load them into trucks directly to reduce manual handling.

Performance Advantages

Tire Hauling Design

Hauling by truck or tractor head, convenient highway driving, transfer speed up to 30-50km/h. Hydraulic outriggers for quick leveling, can be put into production within 30 minutes.
Compact Integrated Structure

Combining jaw crusher, vibrating feeder and conveyor belt, the length is usually <12 meters and the height <3.5 meters.
Strong Power Adaptability

Optional diesel engine (no electricity environment) or external 380V electric motor, power range 50-150kw.
Outstanding Economy

Prices are 30%-50% lower than crawlers and maintenance costs are even lower, making it suitable for SMEs（small and medium-size enterprise）with limited budgets.

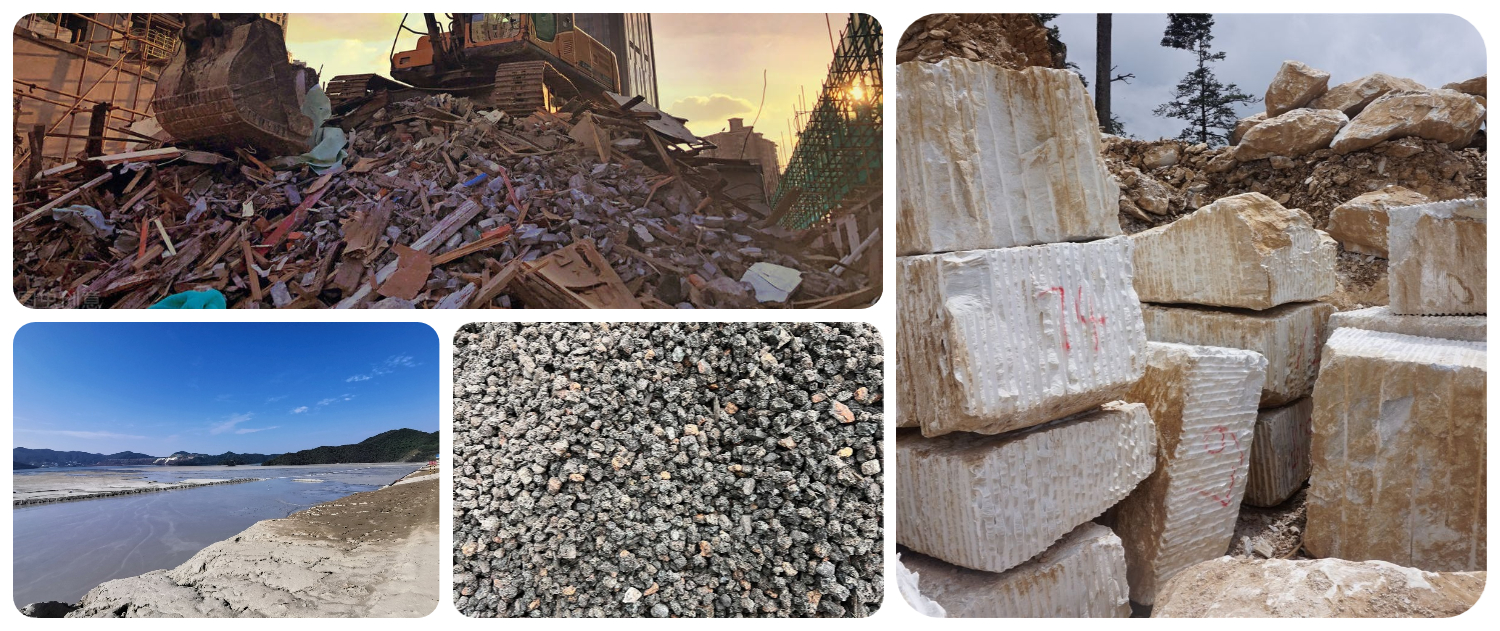

Application Areas

1. Construction waste: concrete blocks, bricks and tiles, asphalt blocks recycling.

2. Natural stone: river pebbles, limestone, marble and other medium and low hardness materials.

3. Mine tailings: on-site crushing of small metal mines and coal mines.

4. Industrial waste: slag, ceramic fragments etc.

Technical Parameters

Small Mobile Hammer Crusher

Model	Feed Opening Size （mm）	Production Capacity（t/h）	Number of Hammer Head	Hammer Head Weight（kg/pcs）	Drive		Belt Conveyor Width（mm）	Vibrating Feeder Model
					Motor	Diesel
PC200*300	250*210	1-3	9	1.7	5.5kw	12HP	400	---
PC240*450	310*280	3-5	16	2.5	7.5kw	15HP	400	---
PC310*520	370*290	7-8	20	3	15kw	25HP	400	---
PC400*600	480*370	10-15	20	5	22kw	36HP	400	0420
PC600*600	630*370	15-20	24	5	30kw	36HP	500	0530
PC600*800	650*470	20-30	24	8	55kw	4105	600	0530
PC800*800	800*480	25-35	28	8	75kw	6105	600	0730
