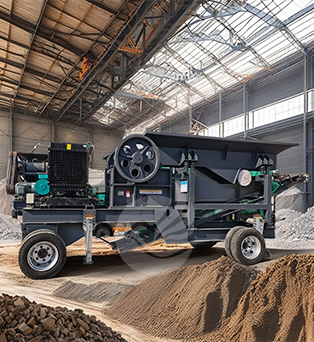

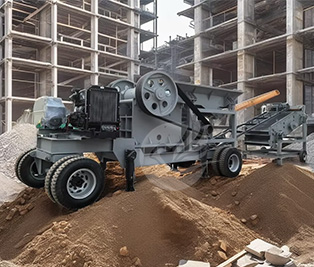

Small Mobile Jaw Crusher

The small mobile jaw crusher is a compact crushing device with a tire chassis that can be towed and moved. It is particularly suitable for small and medium-scale production and operations that require frequent relocation.

It is specifically designed to process high-hardness materials and is typically used for coarse crushing or primary crushing.

How to choose?

1. Raw Ore Type — (granite, basalt, pebbles, etc.)

2. Production Capacity — 1 to 100 tons/hour (depending on customers' requirements).

3. Feed and Output Size — Determine the feed port size, number of screen layers, and mesh hole size.

4. Power Source— Diesel, electric or dual power.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>

Small Mobile Jaw Crusher

01 Diesel engine/motor drive: Adopt diesel engine (suitable for no power supply environment) or electric motor (need 380V industrial electricity) as power source to drive main crushing machine, feeder and conveyor belt.

02 Vibrating feeder: Evenly conveying materials to the crusher, adjustable feeding speed, matching the processing capacity of the crusher.

03 Crushing system: The main machine can choose jaw crusher to crush large materials to medium and fine size.

04 Vibrating screen: Some models are equipped with multi-layer screens to classify the crushed materials according to particle size (e.g.10-20mm,20-30mm,30-40mm).

05 Belt Conveyor: Convey the finished materials to the stacking area or load them into trucks directly to reduce manual handling.

Performance Advantages

Tire Hauling Design

Hauling by truck or tractor head, convenient highway driving, transfer speed up to 30-50km/h. Hydraulic outriggers for quick leveling, can be put into production within 30 minutes.
Compact Integrated Structure

Combining jaw crusher, vibrating feeder and conveyor belt, the length is usually <12 meters and the height <3.5 meters.
Strong Power Adaptability

Optional diesel engine (no electricity environment) or external 380V electric motor, power range 50-150kw.
Outstanding Economy

Prices are 30%-50% lower than crawlers and maintenance costs are even lower, making it suitable for SMEs（small and medium-size enterprise）with limited budgets.

Application Areas

1. Construction waste: concrete blocks, bricks and tiles, asphalt blocks recycling.

2. Natural stone: river pebbles, limestone, marble and other medium and low hardness materials.

3. Mine tailings: on-site crushing of small metal mines and coal mines.

4. Industrial waste: slag, ceramic fragments etc.

Technical Parameters

Small Mobile Jaw Crusher

Model	Type	Feed Opening Size （mm）	Adjustable Outlet Size （mm）	Discharge Opening Size （mm）	Production Capacity（t/h）	Drive		Belt Conveyor Width（mm）	Vibrating Feeder Model
Model	Type	Feed Opening Size （mm）	Adjustable Outlet Size （mm）	Discharge Opening Size （mm）	Production Capacity（t/h）	Motor	Diesel	Belt Conveyor Width（mm）	Vibrating Feeder Model
PE150*250	coarse jaw	150*250	0-30	20	2-7	5.5kw	12HP	500	2520
PE200*300	coarse jaw	200*300	10-50	20	3-9	7.5kw	15HP	500	0420
PE220*350	coarse jaw	220*350	10-50	20	10	11kw	20HP	500	0420
PE250*400	coarse jaw	250*400	20-60	20	15-20	15kw	25HP	500	0420
PE300*500	coarse jaw	300*500	40-80	30	25-30	22kw	36HP	500	0520
PE400*600	coarse jaw	400*600	40-100	40	40-50	30kw	4105	600	0625
PE500*750	coarse jaw	500*750	50-100	40	60-80	55kw	4108	800	0735
PE600*900	coarse jaw	600*900	150-200	40	100	75kw	6105	800	0938
