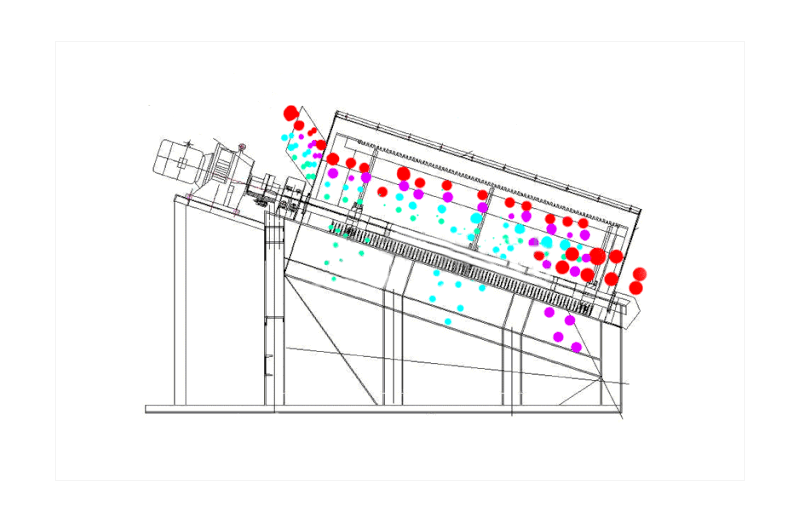

The material moves quickly on the screen surface to improve the screening efficiency.
Equipped with multi-layer screen to realize multi-level screening.
Suitable for materials with different particle size and humidity.
Optimized design, smooth operation, low noise,simple structure, easy maintenance.
1.Mining: used for screening and grading of ores.
2.Building materials: used for sieving sand, gravel, cement and other building materials.
3.Chemical industry: used for screening of chemical raw materials.
4.Food: used for screening and grading of food raw materials.
5.Environmental protection: used for screening materials in waste treatment and soil remediation.
| Specification | Cylinder (mm) | Rotation Speed（r/min.） | Inclination Angle （°） |
Power （kw） |
Production Capacity （t/h） |
Overall Dimension （mm） |
Weight （T） |
|
| Diameter | Length | |||||||
| GS1.0*3.0 | Ø1000 | 3000 | 22 | 2-2.5 | 1.5 | 20-60 | 3500*1400*2200 | 1.5 |
| GS1.2*4.5 | Ø1200 | 4500 | 17 | 2-2.5 | 4 | 30-80 | 5700*1600*2400 | 2.5 |
| GS1.5*5.0 | Ø1500 | 5000 | 14 | 2-2.5 | 7.5 | 80-160 | 6860*1900*2810 | 3.8 |
| GS1.6*6.0 | Ø1600 | 6000 | 12 | 2-2.5 | 11 | 110-260 | 7300*2000*3000 | 4.7 |
| GS1.8*6.5 | Ø1800 | 6500 | 11.5 | 2-2.5 | 11 | 220-380 | 9000*2200*3200 | 6 |
