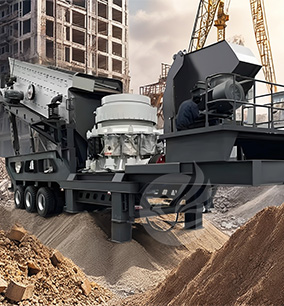

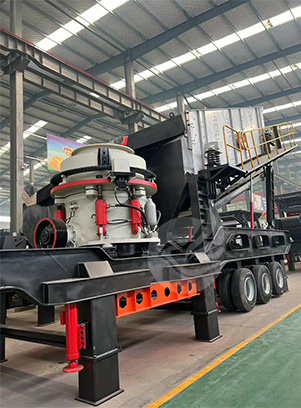

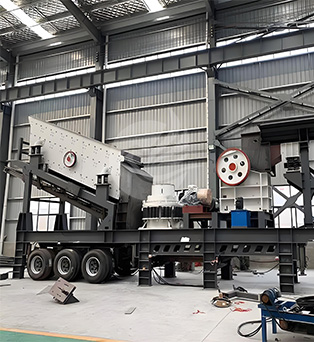

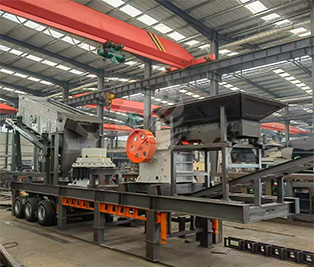

Tyre Mobile Cone Crushing Station

The tyre-mounted mobile cone crushing plant is a highly efficient mobile crushing device that integrates cone crusher, vibrating screen, feeding system and electrical control system.

This equipment features a tire-mounted walking mechanism and is particularly suitable for secondary or tertiary crushing operations of materials with medium hardness or higher.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

Tyre Mobile Cone Crushing Station

01 Feeding stage: Materials are fed into the vibrating feeder via a loader or excavator, undergo pre-screening, and are then uniformly fed into the crushing system.

02 Crushing stage: Materials enter the crushing chamber of the cone crusher, where they are subjected to compression, impact, and bending to achieve the desired crushing effect.

03 Screening stage: After crushing, the material is graded using an internal or external vibrating screen. Qualified material is discharged via the main conveyor, while oversized material is returned to the crusher for re-crushing.

04 Mobile relocation: Equipped with hydraulic outriggers and a tire-mounted travel mechanism, the unit can be towed by a tractor. Relocation typically takes no more than one hour.

Performance Advantages

High Crushing Efficiency

The cone crusher utilizes the layer compression crushing principle, producing high-quality finished product particle shapes with a low proportion of needle-shaped and flake-shaped particles.

Production capacity can reach 50-400 tons per hour (depending on the equipment model).
Uniform Output Particle Size

By adjusting parameters such as the crushing chamber type and eccentricity, required output particle size can be achieved.

The output size could be adjusttable(e.g. 0-5 mm, 5-5 mm, 15-30 mm,etc.)
High level of Intelligence

Equipped with an automatic control system, it monitors critical parameters such as main shaft position and lubricating oil temperature in real time.

Some models support remote monitoring and fault diagnosis.
Energy-efficient and Environmentally Friendly

Adopts hydraulic adjustment and hydraulic protection devices, reducing energy consumption by 15-20% compared to traditional equipment.

Equipped with a comprehensive dust removal and noise reduction system.
Easy to Move

The machine is highly integrated, eliminating the need to disassemble major components during relocation.

Hydraulic legs ensure operational stability.

Application Areas

1. Mining industry: used for crushing ores in mining, which is convenient for subsequent processing and transportation.

2. Highway and railway construction:used to crush roadbed materials to provide foundation materials for highway and railway construction.

3. Water conservancy project:used for crushing large stone materials, which is used in dam,riverbank protection and other projects.

4. Metallurgical industry:used to crush metallurgical slag, which is convenient for subsequent metal extraction and reuse.

5. Environmental protection industry: used to process solid waste to realize the resource recycling.

6. Energy industry:In coal, oil and other energy resource extraction,it is used to crush large materials, which is easy to transport and processing.

Technical Parameters

Tyre Mobile Cone Crushing Station

Model	Cone Crusher	Feeding Size (mm)	Capacity(t/h)	Vibrating Screen	Overall Dimensions
MH-CS75	CS75	≤160	59-163	3YK1848	12600×2800×4400mm
MH-CS110	CS110	≤178	100-200	3YK1860	13800×3000×4400mm
MH-CS160	CS160	≤188	132-253	3YK2160	13800×3000×4400mm
MH-CS220	CS220	≤230	215-330	3YK2160	14500×3000×4500mm
MH-CH420	CH420	≤240	85-170	3YK1848	12600×2900×4400mm
MH-CH430	CH430	≤360	120-345	3YK1860	13800×3000×4500mm
MH-CH440	CH440	≤450	255-605	3YK2260	14800×3200×4600mm
MH-HP200	HP200	≤185	145-250	3YK2160	14200×3000×4500mm
MH-HP300	HP300	≤230	180-300	3YK2260	16500×3200×4600mm
MH-HP400	HP400	≤230	220-380	3YK2260	16500×3200×4600mm
