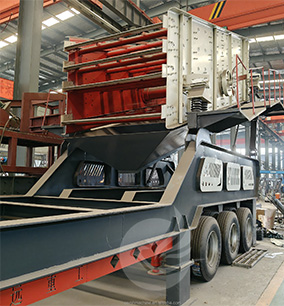

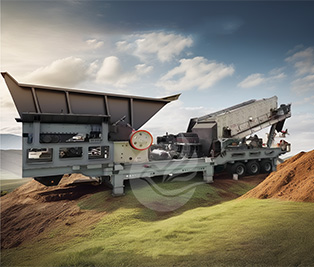

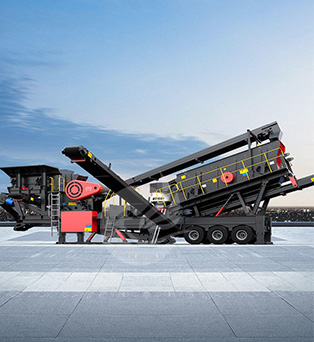

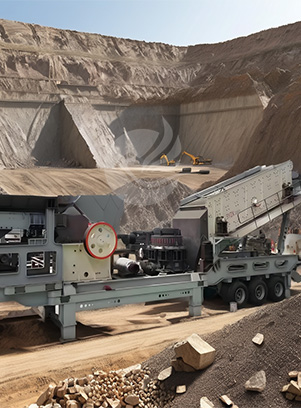

Tyre Mobile Crushing and Screening Station

The tyre-mounted mobile crushing and screening plant is a modern mobile aggregate processing equipment that integrates functions such as crushing, screening and conveying.

This equipment adopts a tire-mounted walking mechanism, featuring flexible relocation, quick installation, and strong adaptability. It is widely used in fields such as mining, construction waste treatment, road construction, and urban renovation.

Email WhatsApp

Working Principle Performance Advantages Application Areas Technical Parameters

Working Principle

<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>

Tyre Mobile Crushing and Screening Station

01 Feeding stage: Materials are fed into the vibrating feeder via a loader or excavator, and the feeder uniformly conveys the material to the crusher.

02 Crushing stage: The material enters the crusher (jaw crusher, cone crusher,heavy hammer crusher or impact crusher) for crushing. Depending on process requirements, single-stage or multi-stage crushing can be employed.

03 Screening Stage: The crushed material enters the vibrating screen for screening. Qualified material is discharged via the main conveyor, while oversized material is returned to the crusher for re-crushing (closed-loop circulation).

04 Conveying Stage: Finished materials of different specifications are conveyed to designated stockpiles via their respective conveyors.

05 Mobile Relocation: Equipped with hydraulic outriggers and tire-mounted travel mechanisms, the equipment can be towed by a tractor. Relocation typically takes no more than one hour.

Performance Advantages

Highly Integrated

Integrated design of crushing, screening, and conveying systems, with a small footprint.
Mobile and Flexible

Tyre-mounted walking mechanism for quick and easy relocation.

Hydraulic outriggers ensure operational stability.
High Adaptability

Can be configured with different crusher (jaw crusher, cone crusher, heavy hammer crusher,impact crusher), capable of processing materials of various hardness levels (compressive strength ≤ 350 MPa).
Intelligent Control

PLC control system enables automated production and real-time monitoring of equipment operation status.
Environmental Protection and Energy Efficiency

Low-noise design with dust collection equipment, achieving a 15-20% reduction in energy consumption compared to fixed production lines.

Application Areas

1. Mining industry: used for crushing ores in mining, which is convenient for subsequent processing and transportation.

2. Highway and railway construction:used to crush roadbed materials to provide foundation materials for highway and railway construction.

3. Water conservancy project:used for crushing large stone materials, which is used in dam,riverbank protection and other projects.

4. Metallurgical industry:used to crush metallurgical slag, which is convenient for subsequent metal extraction and reuse.

5. Environmental protection industry: used to process solid waste to realize the resource recycling.

6. Energy industry:In coal, oil and other energy resource extraction,it is used to crush large materials, which is easy to transport and processing.

Technical Parameters

Tyre Mobile Crushing and Screening Station

Model	MH-HP300	MH-HP400	MH-CH420	MH-PF1213	MH-PF1316	MH-5X0926	MH-5X1040
Total Power(kw)	268.5	373.5	308.5	227.5	285.5	293.5	441
Total Weight(T)	39	48	38	35	39	37	40
Production Capacity(t/h)	100-200	150-300	90-200	80-200	100-300	85-200	120-300
Vibrating Screen	3YK1865	3YK2165	3YK2165	3YK1865	3YK2165	2YK1865	2YK2165
Crusher	HP300	HP400	CH420	PF1213	PF1316	5X0926	5X1040
Motor Power(kw)	220	315	250	200	250	264	400
Max. Feed Size(mm）	180	215	215	300	300	35	40
Feed Conveyor	B1000	B1200	B1200	B1000	B1200	B1000	B1200
Discharge Conveyor	B1000	B1200	B1200	B1000	B1200	B1000	B1200
Return Conveyor	B500	B600	B650	B500	B650	B650	B800
