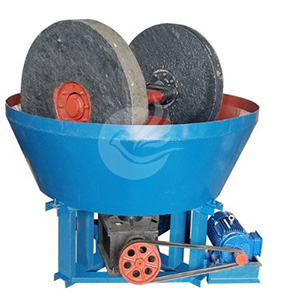

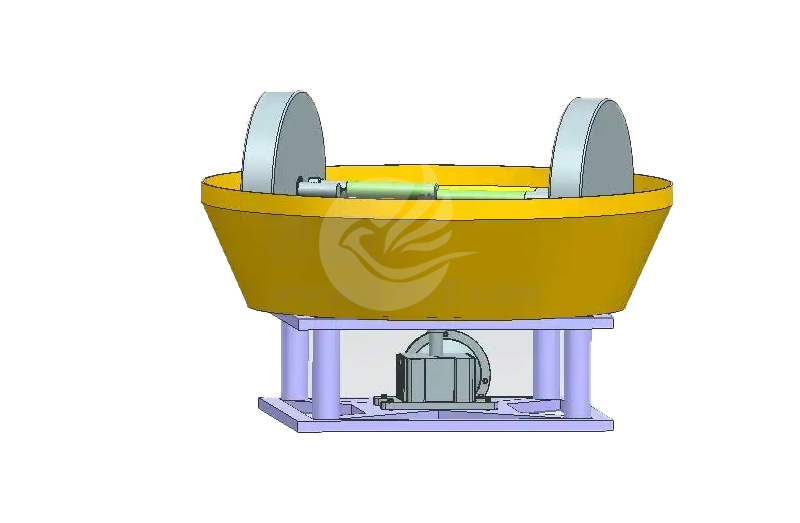

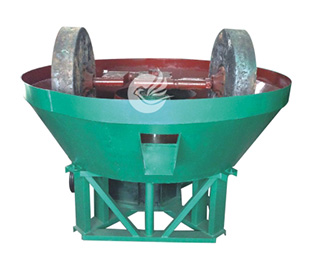

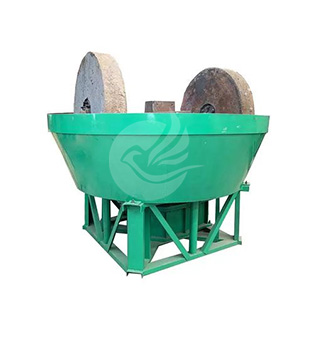

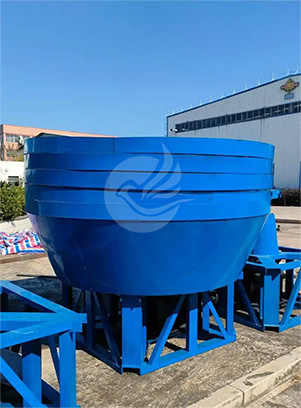

Wet pan mill is a type of equipment used for wet grinding, mainly used to grind ores or other materials in liquid medium (usually water), especially suitable for processing ores and minerals with high hardness.
Wet pan mill is very effective in wet grinding, which can improve material processing efficiency and reduce dust pollution.
Grinding in liquid medium, reducing dust pollution, suitable for processing materials prone to dust.
It can grind the material into fine powder quickly,improving efficiency of subsequent process.
Simple operation, easy installation and maintenance.
Adopting wear-resistant materials, durable and suitable for long time working.
1.Mining industry: used for grinding gold, silver, copper, iron and other ores.
2.Metallurgical industry: used for grinding metal powder and metallurgical raw materials.
3.Chemical industry: used for grinding chemical raw materials.
| Model | 1600 | 1600 | 1500 | 1500 | 1500 | 1400 | 1300 | 1200 | 1100 | 1000 |
| Grinding Pan（mm） (Diameter*Width) |
Ø2100*500 | Ø2050*450 | Ø2000*350 | 1800*250 | ||||||
| Grinding Roller Diameter（mm） | Ø1600 | Ø1500 | Ø1400 | Ø1300 | Ø1200 | Ø1100 | Ø1000 | |||
| Grinding Roller Thickness（mm） | 400 | 350 | 400 | 350 | 300 | 250 | 250 | 200 | 200 | 200 |
| Feed Particle Size（mm） | ＜30 | ＜20 | ||||||||
| Discharge Particle Size（mm） | 0.07-0.6 | |||||||||
| Production Capacity（t/h） | 4-7 | 3-6 | 3-5 | 2-4 | 2.5 | 2 | 1.5 | 1 | 0.8 | 0.5 |
| Power（kw） | 37 | 30 | 30 | 22 | 18 | 15 | 11 | 7.5 | 5 | 5 |
| Overall Dimension（mm） | 2800*2800*2100 | 2700*2700*2700 | 2400*2400*1600 | |||||||
| Discharge Method | Overflow Type | |||||||||
| Weight（T） | 16.2 | 15.5 | 15.5 | 12.5 | 11.5 | 9.5 | 8.8 | 5.5 | 5 | 4.5 |
